Ultimeter Weather Stations

Weather Stations Accessories

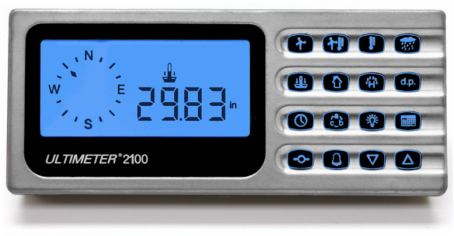

Ultimeter Weather System

Ultimeter Weather System   $759

Paging Option

This is a wired weather system that includes a stunning platinum-tone console with brilliant blue display backlighting. To improve the user interface still further, an illuminated keypad provides exceptional visibility in darkness or low-light conditions. The console displays the follow weather parameters.
  • Temperature and Humidity
  • Barometric Pressure
  • Dew Point
  • Wind Speed and Direction
  • Wind Chill
NOTE: This is a special version of the Ultimeter station that reads absolute barometer and streams the weather data through the serial port that DragStat can read.

Specifications:
  • Temperature -55 to 150°F, resolution of 0.1° with an accuracy of ±1°F.
  • Humidity 1 to 100%, resolution of 1% with an accuracy of ±4%.
  • Barometric Pressure 27.5 to 31.5 inHg, resolution of 0.01 inHg with an accuracy of ±0.05 inHg.
Features:
  • The radiation shield provides excellent protection from solar radiation and other sources of radiated and reflected heat for accurate temperature and humidity readings.
  • All-digital wind sensor, featuring exceptional response in all wind conditions, including very low wind speeds typically starting threshold 1.5 mph.
  • Console is powered by the included 12V power adapter with battery backup.
  • Includes a 1-year warranty and is compatible with DragStat drag racing software.
Kit Includes:
  • Sensor Suite w/Radiation Shield
  • Backlit Console
  • Power Adapter
  • Wind Anemometer
  • Communication junction box
  • USB serial adapter
  • 20' sensor cabling
  • Hardware manual
 Paging Option Kit Includes:
  • Paging Transmitter
  • Alpha Numeric Pager
  • 6" Antenna
  • 6' USB to Serial Adapter
  • 3' Serial Extension Cable
  • 15' Antenna Cable
  • Power Adapter
Ultimeter Weather System
Ultimeter Weather System
Paging Transmitter Kit

Paging Transmitter Kit   $450



Add a paging transmitter kit to any weather station to get up to the minute weather and prediction data when you are in the staging lanes. The transmitter ensures that you can receive pages up to 2 miles away (line of sight). The durable pager has excellent reception with up to 8-line display and back light. The kit includes a serial to USB adapter, antenna cable and mount. Add optional permanent antenna mount for mounting an antenna to the trailer.

Kit Includes:
  • Paging Transmitter
  • Alpha Numeric Pager
  • 6" Antenna
  • 6' USB to Serial Adapter
  • 3' Serial Extension Cable
  • 15' Antenna Cable
  • Power Adapter
